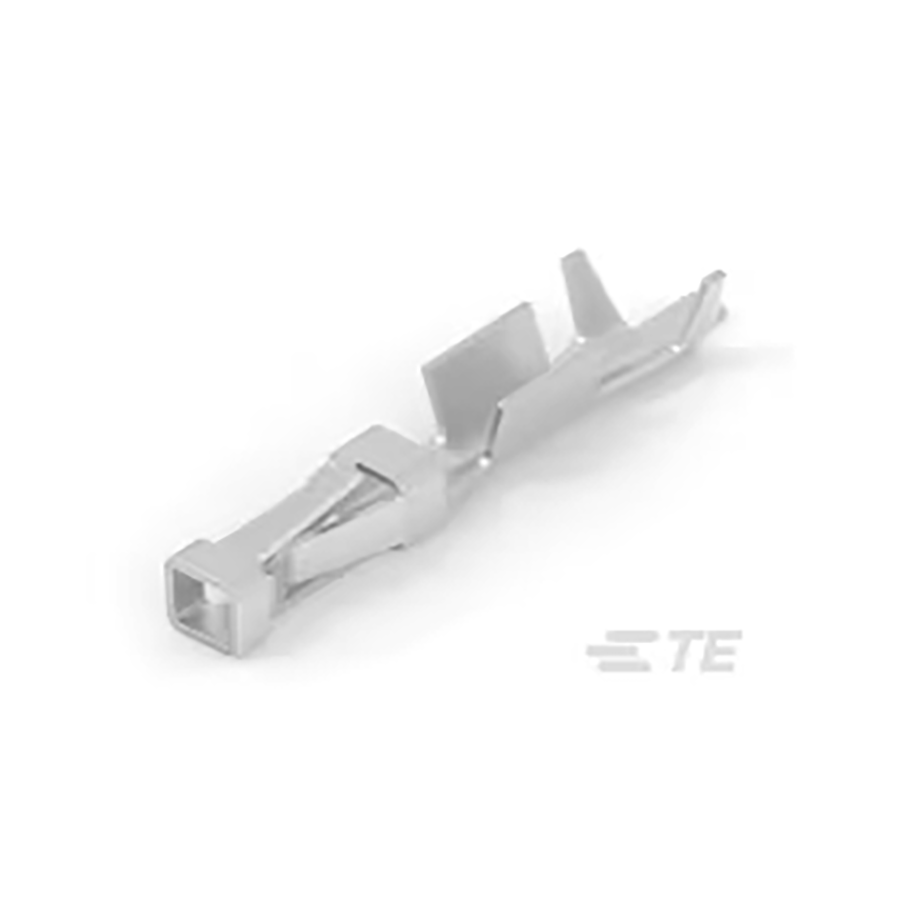

104479-8
Manufacturer:
TE Connectivity
Mfr.Part #:
104479-8
Datasheet:
Description:
Headers and Wire Housings Cable Socket
| Parameter | Value |
|---|---|
| Length | 11.68 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Voltage Rating (AC) | 300 V |
| Packaging | Reel |
| Depth | 2.66 mm |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Current Rating | 3 A |
| Approvals | CSA |
| Orientation | Straight |
| Operating Supply Voltage | 300 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 24 AWG |
| Wire/Cable Type | Discrete |
| Contact Style | Crimp |
| Contact Resistance | 12 mΩ |
| Contact Current Rating | 3 A |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 24 AWG |
| Plating | Tin |
| Insulation Diameter | 1.52 mm |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
Stock: 37080
Distributors
pcbx
pcbxUnit Price$0.87230
Ext.Price$0.87230
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.87230 | $0.87230 |
| 10 | $0.43615 | $4.36150 |
| 50 | $0.33550 | $16.77500 |
| 100 | $0.25808 | $25.80800 |
| 500 | $0.19852 | $99.26000 |
| 1000 | $0.15271 | $152.71000 |
| 3000 | $0.11747 | $352.41000 |
| 5000 | $0.09036 | $451.80000 |
| 10000 | $0.06951 | $695.10000 |
| 30000 | $0.06574 | $1972.20000 |
| 50000 | $0.06446 | $3223.00000 |
